Nitrogen

Plastic housings?  What about metal?

Simply put: metal sucks.  What do you make bells out of?  Metal!  And metal is heavy, conducts a lot of heat (or cold), and is expensive.  It’s a bad choice for audio and comfort, but it does look pretty.  Thankfully, we don’t sell jewelry…

So we looked for the best plastic we can use.  A 3 year research project (that actually resulted in published papers at scientific conferences) found the best material: a specific blend of Eastman Chemicals’ Tritan™ copolymer.  This material proved to be not just rigid, but acoustically dead with lower energy storage and transmission than the polycarbonate we were using.  Stray resonance and noise is lowered even more.

We also refined the external and internal geometry to make it more anti-resonant, so clarity is increased alongside the improvements of the materials used.  The result is the most stable, lowest resonant IEM enclosure ever made.  All with the lowest weight enclosure possible.

I See a Detachable Cable?  What’s That About?

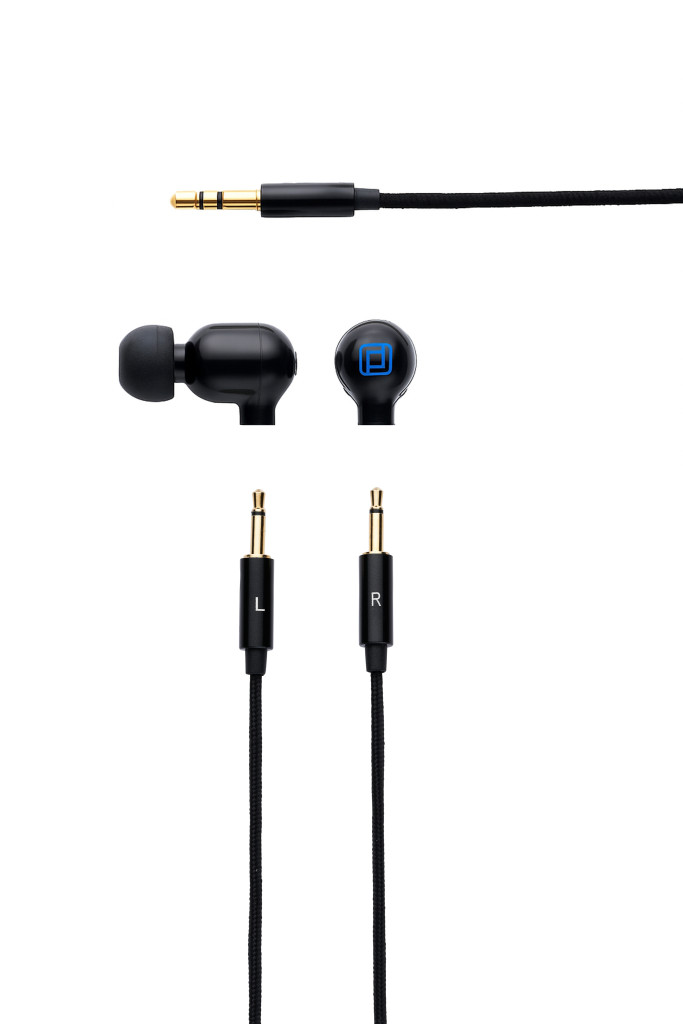

We have also developed our own 2.5mm jack: the IDEEL connector.  This connector is the world’s smallest 2.5mm jack, measuring just 3.6mm across, and a tiny 9.5mm mounting depth. This jack allows us to use the very robust 2.5mm TS plug in our tiny IEMs.  No more delicate MMCX or difficult 2 pin plastic connectors needed.

Transducer Diaphragm: Cotton-based paper
Transducer Surround: PEEK polymer
Transducer Frame: 316 Stainless Steel
Transducer Magnet: N48H Grade Neodymium
Enclosure Body: Tritan™ copolyester
Protective Grille: 316 Stainless Steel
Bonding Compound: Cyanoacrylate Adhesive
Sealant Compound: Polyvinyl Acetate
Mounting Tips: Medical Grade Silicone and Urethanes
Connector: IDEEL 2.5mm TS compatible connector (tip hot, sleeve ground)

All components are Finite Element Analyzed for stress, strain, and durability.
